TIMO provide three type medical waste processing machine, one is the cabinet-type small medical waste shredder for hospital, clinic that easily disposal small volume medical waste in site in time. The second is the industrial medical waste shredder for medical waste treatment center that disposal high volume commercial medical waste daily. Small vertical pressure steam sterilizer or big autoclave sterilizer also can be provided to work together with the shredder. Regarding the autoclave with shredder, TIMO also provide integrated sterilizer and shredder machine for medical waste size reduction and sterilizing.
I. Cabinet-Type Small Medical Waste Shredder
TIMO offer 3 models cabinet-type small medical waste shredder utilizing the latest shredding technologies, the shredders only take 0.6-0.7 m³ space for working, plug and play, in addition, the shredders mounted on heavy casters for easy mobility. The small medical waste shredder equipped with a gravity-feed input chute and high-strength alloy cutting blades that can rotate in two directions to reduce the size and volume of the medical waste down to 50%, the cabinet-type small medical waste shredder offer a efficient, safe, economical solution for the any pharmacy, clinic, hospital or medical supply room.These shredder can process various medical waste such as medicine bottles, saline bottles,saline tubes, blister packs, catheters, syringes, glucose bottles, blood bags, ampoule bottle, used needle offering impressive performance with minimal noise and vibration.

Model MW220
Small Medical Waste Shredder work on single phase with electrical motor 1.5 KW, one cutting chamber with size L320xW160 mm, available for shredding various normal medical waste.

Model MW250
MW250 works on three phase with electrical motor 2.2 KW, two independent cutting chambers with size L320xW160 mm and L200xW200 mm, left chamber for shedding normal medical waste, right chamber for shredding ampoule/penicillin glass bottle.

Model MW053
Small Medical Waste Shredder work on three phase with electrical motor 3 KW, one cutting chambers with size L320xW280 mm available for shedding various medical waste with higher capacity.
Cabinet-Type Small Medical Waste Shredder Feature:
♦ Operating in slow speed and high torque,which can shred rigid and flexible medical waste.
♦ Lighted viewing window on the top for supervising operation.
♦ Low noise 60-70 dB(A)and low energy consumption 1.5-2.2 KW. Ability to work in both office and factory environment.
♦ High hardness and toughness alloy steel blades with wear resistance and impact resistance
♦ Automatically revere to clean stuck material.
♦ Taking up less space 0.6-0.7 cube meter.
♦ Equipped with safety switch on feeding chute to assure safe operation.



♦ Manual opening cover with lighted viewing window on the gravity-feed input chute.
♦ Safety switch on feeding chute, automatically stop when the cover be opened by mistake to protect operator.
II. Integrated Sterilizer And Shredder Combo Machine
TIMO also make integrated sterilizer and shredder model AS30 for medical waste shredding and sterilizing. The medical waste sterilizer and shredder combo machine is suitable for laboratories, dialysis centers, clinics and hospitals. AS30 is the machine that integrated industrial shredder with autoclave sterilizer, but the shredder and the autoclave are not integrated in one chamber, the shredding chamber and the sterilizing chamber are separated. So after sterilizing, you have to manually take the sterilized medical waste to the shredder's chamber for shredding. This health-care facilities AS30 use only steam and electricity to process highly infectious hospital waste on site, such as waste bags, cardboard or rigid containers containing all kinds of surgical, medical and research and healthcare waste, like sharps, gloves, labware, glass, plastic/rubber tubing, filters etc. without emitting harmful substances. The sterilized tank is 30L, using high pressure and high temperature steam to make sterilization. The highest sterilization temperature is 126°C, each working cycle time is about 60-90 min, and the industrial two shaft shredder is driven by 1.5 KW electrical motor, and the cutting chamber size is W330xL220 mm. The capacity of AS30 is about 30kg/hr.
After being treated, the medical waste is fragmented, non-toxic and therefore safe to be disposed of as regular municipal waste. The high grade stainless steel vessel conforms to the Pressure Equipment Directive and the industrial shredder is cross-cut two shaft shredder with powerful shredding blades that can automatically reverse to clean the jammed waste to reduce the size and volume of the waste down to 20%. The steam is produced by a internal steam generator and draining system as standard accessories.The system includes a simple control panel, the sterilizing time, chamber temperature, chamber pressure and waste sterilization status can be manual setting. The control system ensures high reliability, simplicity, safety of operation and automatic biomedical waste process cycles.
The system includes a simple control panel, the sterilizing time, chamber temperature, chamber pressure and waste sterilization status can be manual setting. The control system ensures high reliability, simplicity, safety of operation and automatic biomedical waste process cycles, The Integrated Sterilizer and Shredder have numerous safety features including a safety valve, thermostat, temperature sensors, a water level detector, pressure sensors, cutter automatic reverse and software safety features. The machine meets the highest standards for machinery, quality, safety and operation.
Integrated Sterilizer And Shredder Specifications:
♦ Type: high temperature, pressure and vacuum autoclave with industrial shredder
♦ Process: sterilization prior to Shredding
♦ Sterilization temperature: +5~126°C
♦ Sterilization pressure: ≤ 0.17 Mpa
♦ Microbial Inactivation: 99.99%
♦ Waste volume reduction: 60-80%

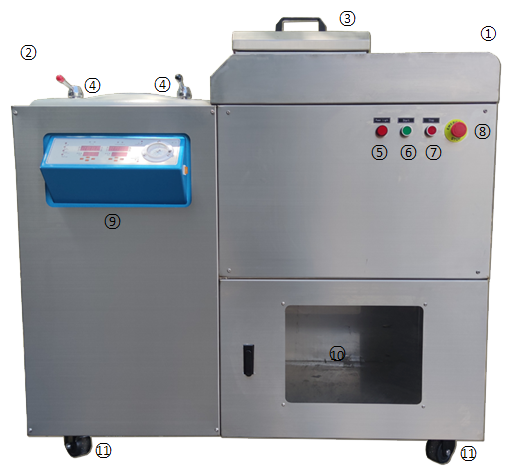

AS30 Structure(Front Side) Specification:
① Industrial Shredder
② Sterilizer
③ Shredder Sliding Cover
④ Sterilizer Cover Open & Close Handle
⑤ Shredder Cutter Reverse Indicator
⑥ Shredder Start
⑦ Shredder Stop
⑧ Emergency Stop
⑨ Sterilizer Control Panel
⑩ Collecting Bin Put Inside Here
⑪ Heavy Duty Caster

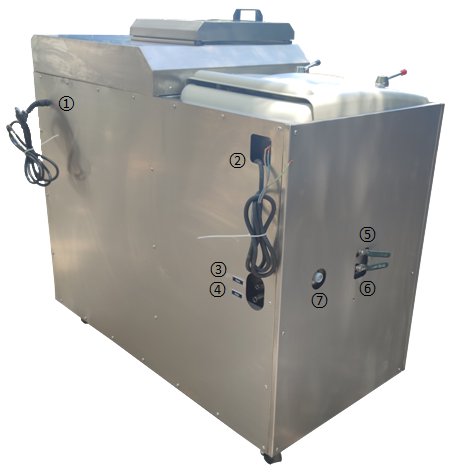

AS30 Structure(Back Side) Specification:
① Shredder Power Line
② Sterilizer Power Line
③ Steam Outlet
④ Water Outlet
⑤ Water Discharge Switch
⑥ Steam Discharge Switch
⑦ Water Inlet
III. Industrial Medical Waste Shredder
TIMO offer a series standard model and customized model industrial medical waste shredder with capacity range from 200 kg/hr to 10 tons/hr. Slow speed, high torque medical waste shredders easily reduce the toughest medical grade materials ranging from fabrics to glass, such as soiled dressings,surgical gowns, liquid medicine bottle, plastics and stainless steel instruments, such as saline bottles, blood bags, packaging and sharps and more.Shredding medical waste in preparation for landfill disposal is a critical part of medical waste processing, our powerful industrial medical waste shredder can accept single bag processing to high volume autoclave cart batch loading and shred the medical waste to a non-reusable and unrecognizable state, the sterilized and shredded medical waste can be used either as a substitute fuel or disposed of together with municipal solid waste.

Model HW300
Small but robust industrial medical waste shredder install with electrical motor 7.5 KW, the size cutting chamber is L320xW300 mm, available for shredding various medical waste. Capacity range from 200-400 kg/hr.

Model HW800
Medium Industrial Medical Waste Shredder install with electrical motor 22 KW, the size of cutting chambers is L800xW500 mm, big cutting chamber and powerful motor can accept batch loading. Capacity range from 1-2 tons/hr.

Model HW1000
Powerful Industrial Medical Waste Shredder install with two electrical motors 22+22 KW, each cutting shaft drives with independent motor which make the shaft get the highest torque, available for shedding various medical waste with high capacity range from 3-4 tons/hr.
Industrial Medical Waste Shredder Feature:
♦ Overload protection with automatic reversal to clear itself and then continues the shredding process automatically.
♦ Advanced bearing protection system to prevent the water go inside.
♦ Severe Shock Protection-Cushion drive system absorbs minor shock loads
♦ High hardness and toughness alloy steel blades with wear resistance and impact resistance
♦ Automatically bearing lubrication system.
♦ Currents detection ammeter help you to inspect the shredder working.
♦ Available for batch loading, high capacity range from 200 kg/hr to 10 tons/hr.



♦ Automatically bearing lubrication system make the shredder high operational safety and long service life.
♦ Double disc springs absorbs minor shock loads, protect the gearbox, shaft, and motor perfectly.
