TIMO provide two type industrial crusher for various glass waste crushing, one is the normal industrial crusher for various size glass bottle waste, the other type is small cabinet-type glass bottle crusher. Normal industrial crusher is ideal multi-feed big glass bottle crusher for high capacity recycling,they can accept batch by batch conveyor feeding. The cabinet-type glass bottle crusher is the ideal hand-fed small glass bottle crusher for small recycling and business applications. Ranging from an under counter crusher for smaller boutique bars, and venues to a larger multi-feed crusher for larger restaurants, hotels and bars with large quantities. The machines are simple and safe to use, compact design and reliable performance. We have glass bottle shreddr model GB800, GB400, GB220, GB210, GB200, please refer the information as below.
Available for: Beer glass bottle, other beverage glass bottle, medicine glass bottle, infusion bottle etc.

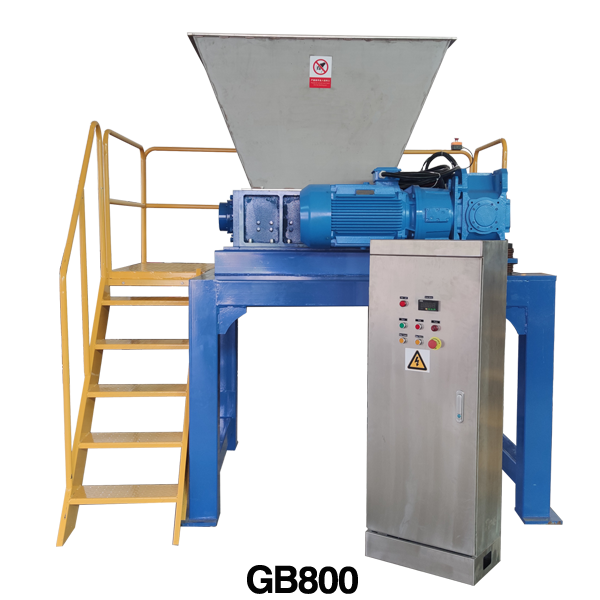

Larger Multi-feed Glass Bottle Crusher

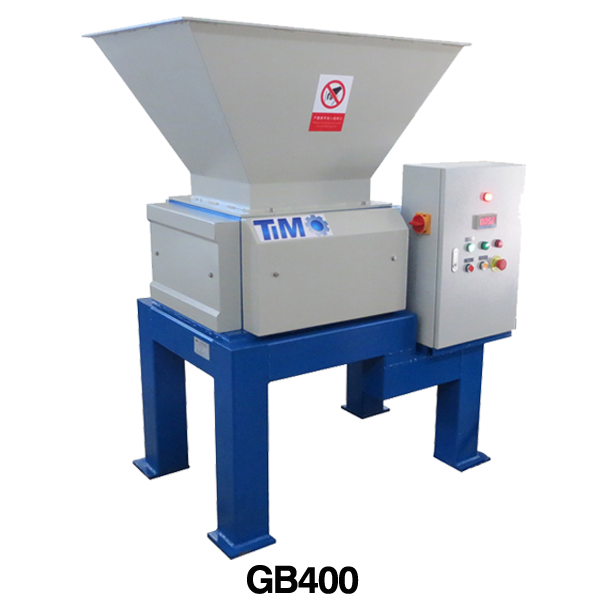

Glass Bottle Crusher Model GB800, GB400 can accept big quantity glass bottles feeding, bath by bath, GB800 install electrical motor 22KW and it can crush 5000~10000 pcs/hr glass bottle, GB400 install electrial motor 7.5KW and it can crush 1000-2000 pcs/hr, we customized made cutter and spacer in order to cut the glass bottles efficiently but with little wearing. After crushing, the glass bottle flakes is about 10-50mm. Please refer the pictures of GB800 & GB400 as below:

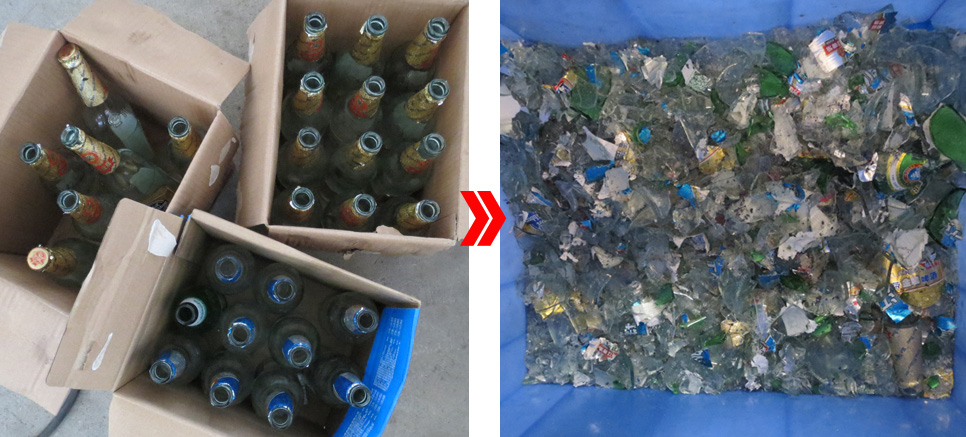

Beer Glass Bottles After Crushing As Below:

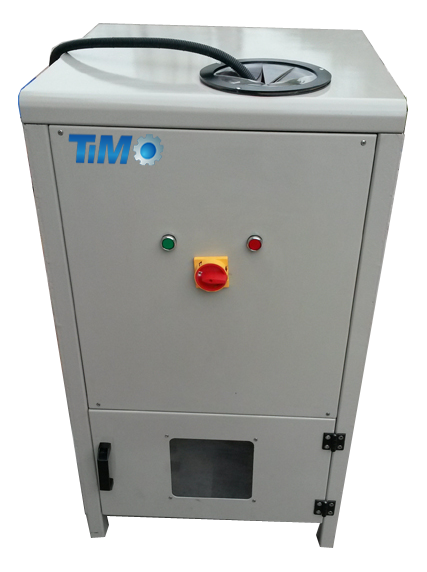

Cabinet-Type Small Glass Bottle Crusher GB210

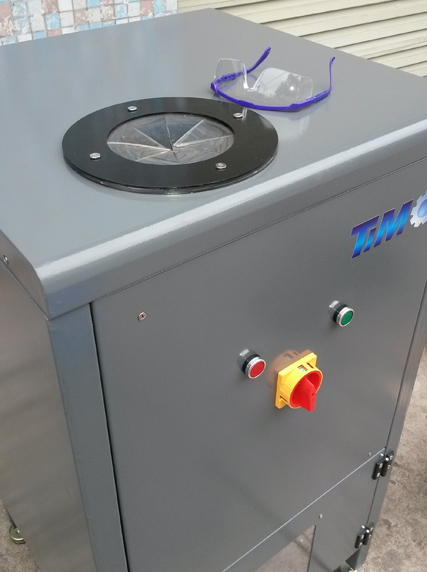

Glass bottle crusher model GB210 the ideal hand-fed quiet operation glass bottle crusher for small recycling and business applications. Ranging from an under counter crusher for smaller boutique bars, hotels. GB210 install 1.5KW electrical motor and 160mm diameter feeding mouth, it is suitable for the glass bottle which has size as similar as beer bottle, the feeding mouth has thick plastic cover, not only effectively prevent glass flakes bound out, but also dust-proof. We can provide customized made screen to control the final flakes size up to 1mm, after crushing, the final glass flakes like the sand. Please refer the picture of GB210 as below:

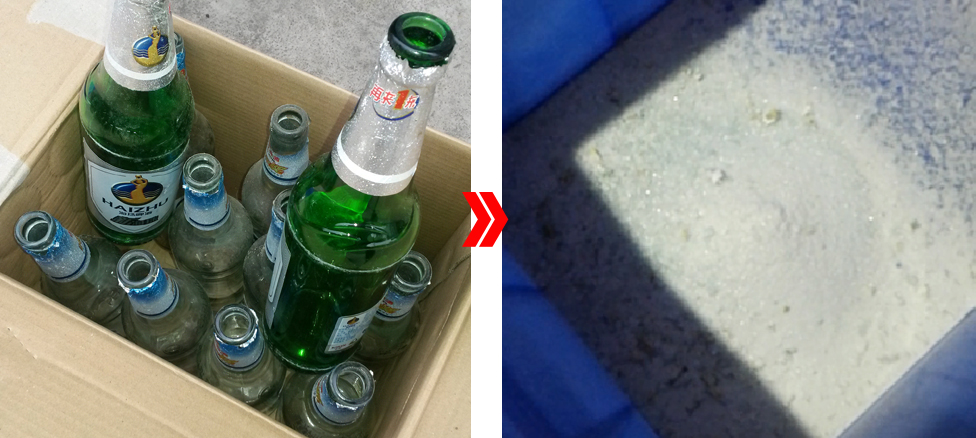

Beer Glass Bottles After Crushing As Below:

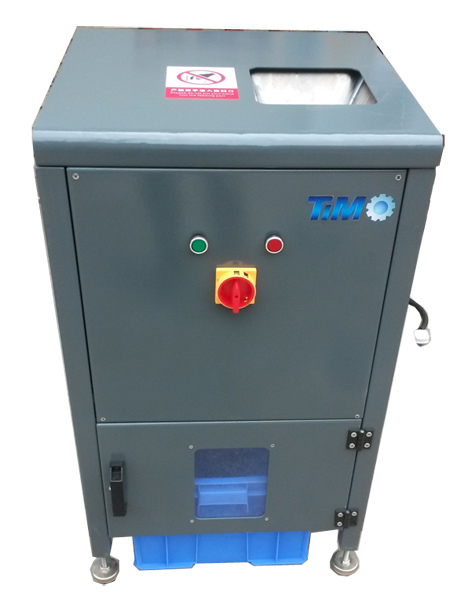

Vaccines Glass Bottle Crusher GB200

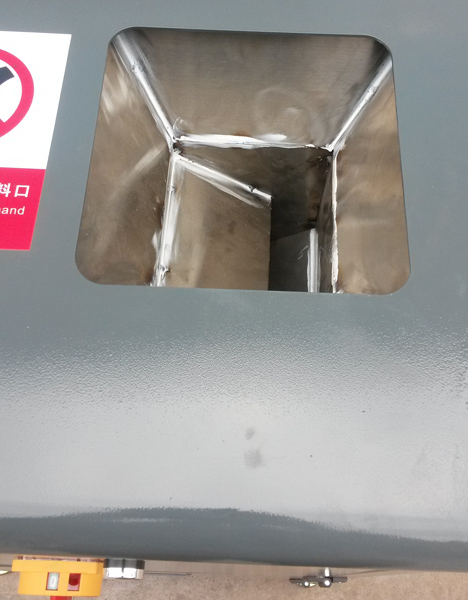

Vaccines Glass Bottle Crusher model GB200 is special design for crushing Ampoule small glass bottle, Penicillin small glass bottle, Vaccines small glass bottle, the physical broken prevent the vaccines glass bottle to be reused. GB200 install 1.5KW electrical motor and 200×200 mm feeding mouth, “Z” type feeding chute not only prevent the small glass particles jump out but also well protect the operator hand. After crushing, the glass flakes size is about 10mm. Please refer the picture of GB200 as below:

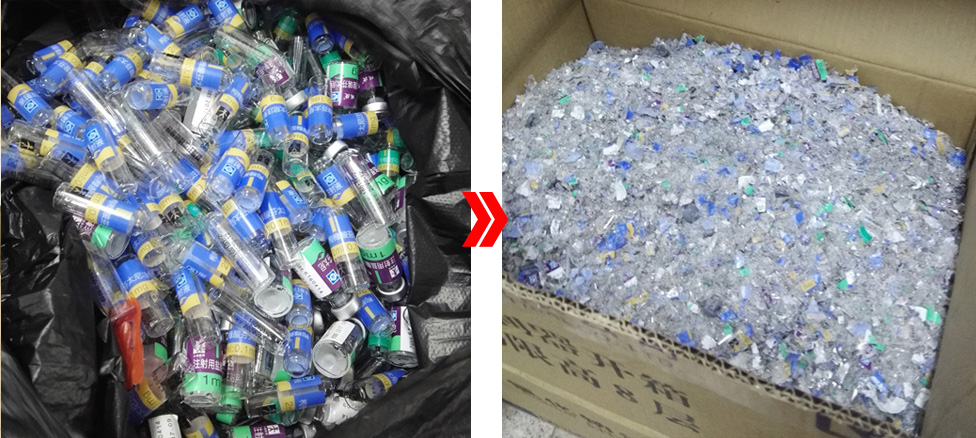

Vaccines Glass Bottle After Crushing As Below:
Glass To Sand Crusher GB220

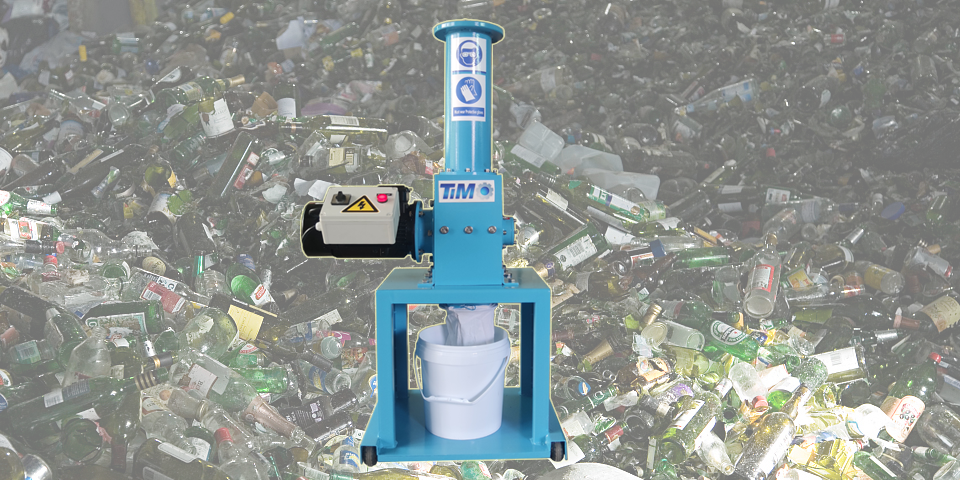

GB220 is the compact glass bottle crusher with simple design and operation, it offering volume reduction solution to a wide variety of glass waste generators Specification, such as bar, home, hotel. there are different size screen range from 8~15mm for optional, please kindly refer the picture of GB220 as below:

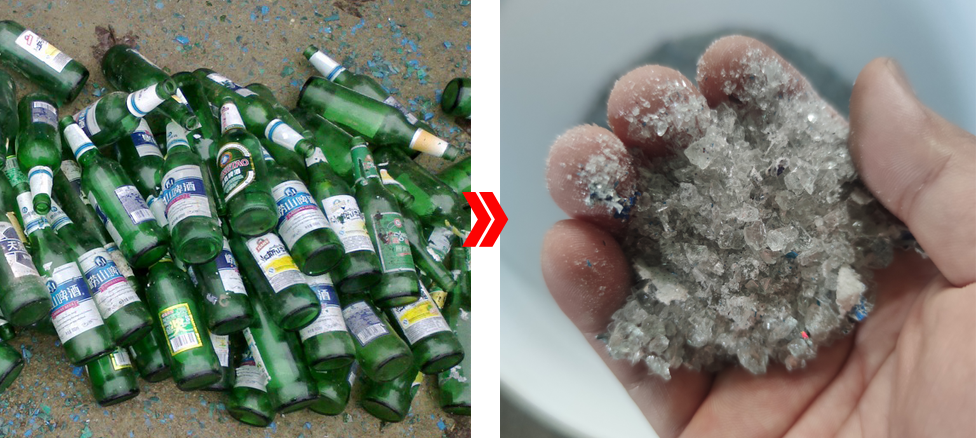

Glass Bottle After Crushing As Below:
